90KW 3Ton/H Flat Die Type Fertilizer Making Machine For Animal Manure

Shandong Dexi Machine Co., Ltd.

90KW 3Ton/H Flat Die Type Fertilizer Making Machine For Animal Manure

  • 1
  • 2
  • 3

Brand Name : DEXI

Model Number : SKJ3-550

Certification : CE ISO

Place of Origin : SHANDONG, CHINA

MOQ : 1 set

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 sets/ month

Delivery Time : 10-20 working days

Packaging Details : Wooden box, Steel frame box, bulk into container

Name : Organic Fertilizer Pellet Machine

power : 90 kw

Capacity : 2500-3500kg

suitable materials : Differ animal manure

Type : Flat die machine

Die : 550mm

roller : 3rollers

Pellets : Daimter 4 - 8 mm

Color : Gray or others

Contact Now

90KW 3Ton/H Flat Die Type Fertilizer Making Machine For Animal Manure

Introduction of organic fertilizer making machine

The flat die type fertilizer pellet machine is good for press different kind of materials into pellets, it is mainly suing for straw feed pellet making, organic fertilizer pellet making.

The flat die ferilizer pellet making machine working, power is transmitted to the main shaft by the transmission mechanism, and the main shaft drives the die to rotate; the material rotates with the die and is forced to be squeezed between the die and the roller, and drives the roller to rotate by the friction force, the continuous pressing force of the roller on the material is formed; under the above action mechanism, the material is continuously pressed into the die hole, and finally extruded from the die hole to form columnar shape pellets, which are finally rolled out from the discharging port through the material discharging device

The fertilizer pellet making machine can make different diameter size of pellets from diameter 2mm to 10mm, by change the flat die of the machine, other parts no need change. The output pellets with columnar shape, and if you want to making ball like pellets, we can provide the ball shaper machine to connecting with the flat die pellet machine. Which can process the columnar shape pellets into small ball type pellets.

The flat die fertilizer pellet machine can press different kind of animal waste into organic fertilizer, such as chicken dung, cow dung, sheep dung, and other animal waste...

Mainly Parameter of fertilizer making machine

Model

Capacity

(kg/h)

Power

(kw)

Specification

(mm)

Weight

(T)

Size

(mm)

SKJ2-250 300-500 15 4-6 0.5 1400x 600x 1000
SKJ2-280 400-700 22 4-6 0.65 1760x 670x 1600
SKJ2-300 500-800 30 4-8 0.76 1860x 670x 1600
SKJ2-350 600-1000 37 4-8 1.2 1800x 800x 1700
SKJ2-450 800-1200 45 4-8 1.8 1800x 850x 1750
SKJ3-350 600-1200 37 4-8 2.2 1900x 850x 1750
SKJ3-450 800-1500 55 4-8 4.3 2300x 1100x 1900
SKJ3-550 1000-2000 75 4-8 5.5 2350x 1100x 2050
SKJ3-550 2500-3500 90 4-8 5.5 2350x 1100x 2050

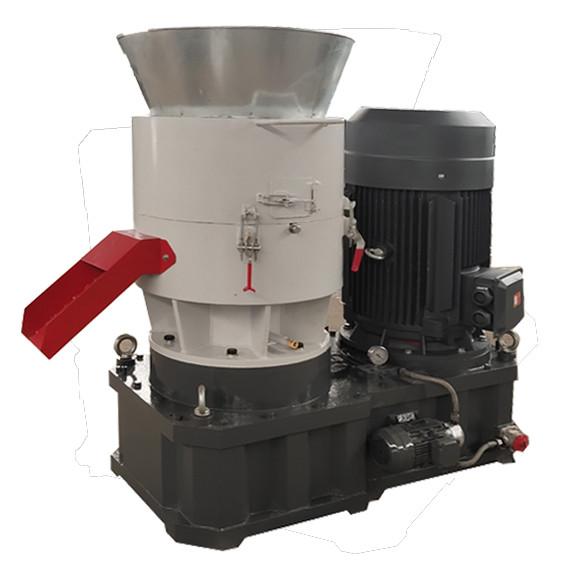

Photos of the fertilizer making machine:

90KW 3Ton/H Flat Die Type Fertilizer Making Machine For Animal Manure90KW 3Ton/H Flat Die Type Fertilizer Making Machine For Animal Manure

90KW 3Ton/H Flat Die Type Fertilizer Making Machine For Animal Manure

90KW 3Ton/H Flat Die Type Fertilizer Making Machine For Animal Manure

90KW 3Ton/H Flat Die Type Fertilizer Making Machine For Animal Manure

The photos of organic fertilizer pellets from the pellet machine:

90KW 3Ton/H Flat Die Type Fertilizer Making Machine For Animal Manure
